LSM Series Polariscopes are fully automatic 2D-measuring devices which measure retardation values and the direction of a slow axis in a transparent body having strain and exhibiting birefringence.
The Fullauto StrainEye makes it possible to start measuring immediately by only putting a sample on the polarizer. Retardation values and the direction of the slow axis can be measured easily. Since the direction of retardation and a slow axis are 2D-displayed on a monitor, those direction states are recognized immediately by the operator.
This device is connected with a PC, and it is simple to save not only the scan data, images, 3d images and numerical data. With the free viewer software additional technicians can review the scans on their own pcs.
The software allows for additional analysis including setting limits on results and a 3d visualizer that lets you see the data as a 3d model that you can rotates in all directions.
With the use of super-luminescent LED as a light source, this detector is designed for long life and low power consumption.

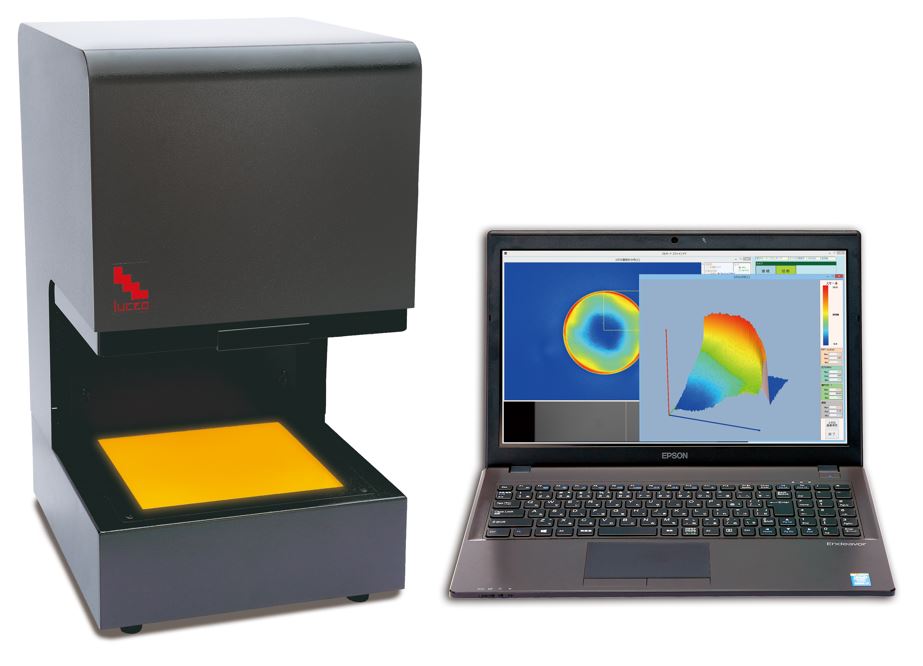

LSM-9001LE
The LSM-9001 LE has a larger view area that can accommodate samples that are up to 200x mm x 200mm.
| Circulary polarizing plate size | W200☓D200mm |
| Sample placement space height | 0～130mm |
| Inspection Method | 590nm |
| Repeat accrary | σ=1nm |
| Measurement area size | 200☓200mm |
| Effective pixels | 1100☓1100 |
| Other | Light Source：high-luminanceLED PowerSorce：AC100～240V 50/60Hz DC input 24V 1.6A |
LSM-9001S
The sample size can vary from 10mm x 10mm to 60mm x 60mm based on being equipped with x6 magnification optical zoom lens for taking images.
| Circulary polarizing plate size | W70☓D70mm |
| Sample placement space height | 0～70mm |
| Inspection Method | Rotating analyzer method |
| Setting Wavelength | 590nm |
| Repeat accrary | σ=1nm |
| Measurement area size | Variable (60×60～10×10mm） |
| Effective pixels | 1100☓1100 |
| Other | Light Source：high-luminanceLED PowerSorce：AC 100～240V 50/60Hz DC input 24V 1.6A ,38W Component：Mainbody,PC,Cables |

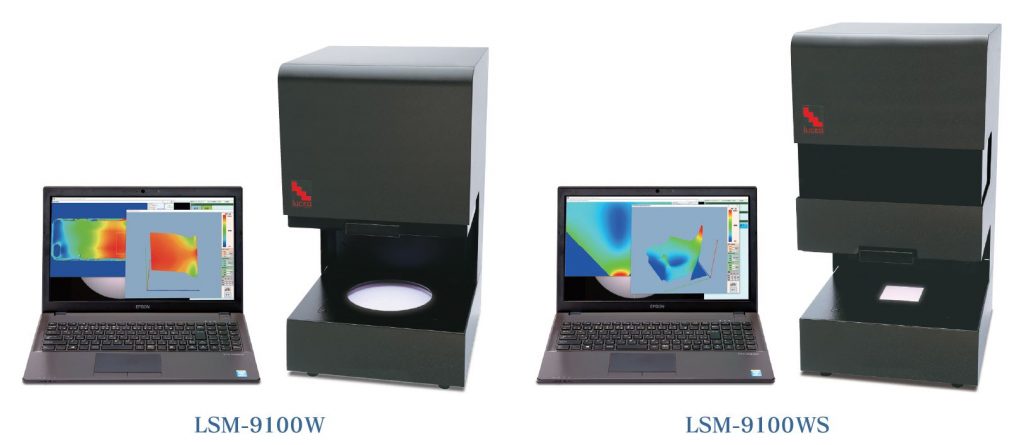

LSM-9100W + LSM-9100Ws
The 9100W line of products has a wider range of retardation that can be tested up to 3,000 nm.
150mm diameter of sample measurement area of LSM-9100W is suitable for measuring large samples. The LSM-9100WS is equipped with a built-in 6-times zoom lens that magnifies small samples.
| Measurement object placement space (height) | LSM-9100W : Max 160 mm LSM-9100WS : Max 115 mm |
| Measurable range | 0～3,000nm (Retardation) |
| Inspection Method | RGB Linear Polarization Method |
| Measurement Wavelength | 420 ～ 680nm |
| Measurement area size | LSM-9100W : ⌀ 150 mm LSM-9100WS : Variable with zoom lens 1. Standard : 60 × 60 ～ 10 × 10 mm 2. Option : 30 × 30 ～ 5 × 5 mm (× 2 Extension lens addition mounting) |
| Effective pixels | 1100☓1100 |
| Other | Light Source：high-luminanceLED PowerSorce：AC100～240V 50/60Hz DC input 24V 1.6A Component：Mainbody,PC,Cables Accessory：Main body cover OS:Windows10 (64bit) |
Luceo Co. Ltd. is an optical manufacturer with over 50 years experience creating optical equipment and optical components from their development to their production and sales.
